| Quantity: | |
|---|---|
Model | Dimension | Magnetic | Spacing | Weight(KG) | ||
(MM) | Force | (IRON+COPPER) | ||||
L | B | H | 120N/CM² | 1.5+0.5 OR 1+3 | ||
X41 1510 | 150 | 100 | 48 | 4.5 | ||
X41 2010 | 200 | 100 | 48 | 7.5 | ||
X41 1515 | 150 | 150 | 48 | 8.5 | ||
X41 2015 | 200 | 150 | 48 | 11.3 | ||
X41 3015 | 300 | 150 | 48 | 16.5 | ||
X41 3515 | 350 | 150 | 48 | 19.8 | ||
X41 4015 | 400 | 150 | 48 | 22.6 | ||
X41 4515 | 450 | 150 | 50 | 25.5 | ||
X41 4020 | 400 | 200 | 50 | 31.5 | ||
X41 4520 | 450 | 200 | 50 | 35.5 | ||
X41 5025 | 500 | 250 | 50 | 45 | ||
X41 6030 | 600 | 300 | 48 | 72 | ||
X41 7030 | 700 | 300 | 48 | 85 | ||

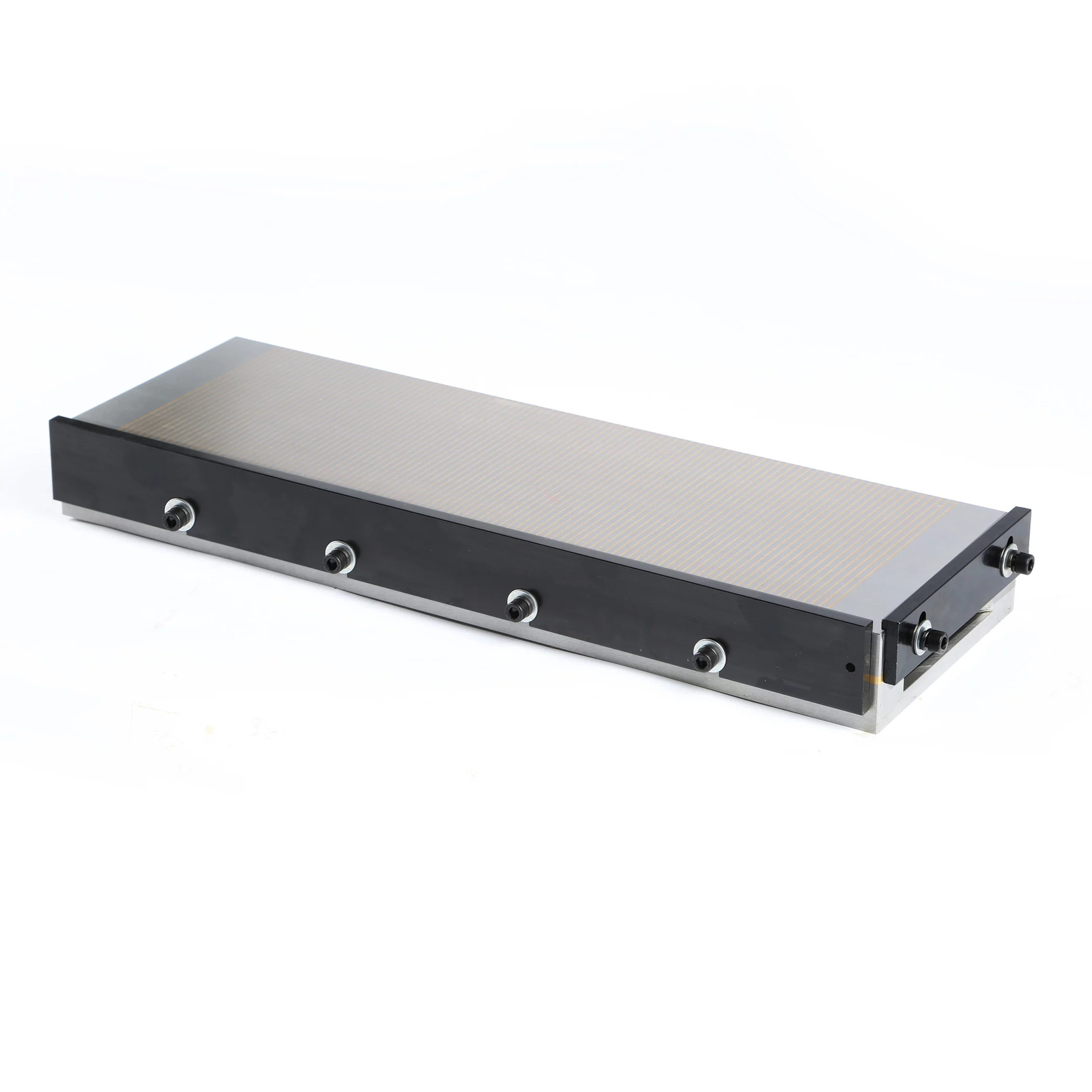

Name | X41 Permanent Magnetic Chuck |
Application | Apply to surface grinder,EDM.WEDM,and other light carving machine or CNC application. |
features | 1.Fine pole spacing,uniform distribution of the magnetic force. 2.Thin and small workpiece processing of the working table is very stable. It doesn't change during magnetizing or demagnetizing. 3.The panel has special processing,completely sealed from dirt and liquid. |
Model | Dimension | Magnetic | Spacing | Weight(KG) | ||
(MM) | Force | (IRON+COPPER) | ||||
L | B | H | 120N/CM² | 1.5+0.5 OR 1+3 | ||
X41 1510 | 150 | 100 | 48 | 4.5 | ||
X41 2010 | 200 | 100 | 48 | 7.5 | ||
X41 1515 | 150 | 150 | 48 | 8.5 | ||
X41 2015 | 200 | 150 | 48 | 11.3 | ||
X41 3015 | 300 | 150 | 48 | 16.5 | ||
X41 3515 | 350 | 150 | 48 | 19.8 | ||
X41 4015 | 400 | 150 | 48 | 22.6 | ||
X41 4515 | 450 | 150 | 50 | 25.5 | ||
X41 4020 | 400 | 200 | 50 | 31.5 | ||
X41 4520 | 450 | 200 | 50 | 35.5 | ||
X41 5025 | 500 | 250 | 50 | 45 | ||
X41 6030 | 600 | 300 | 48 | 72 | ||
X41 7030 | 700 | 300 | 48 | 85 | ||
Name | X41 Permanent Magnetic Chuck |
Application | Apply to surface grinder,EDM.WEDM,and other light carving machine or CNC application. |
features | 1.Fine pole spacing,uniform distribution of the magnetic force. 2.Thin and small workpiece processing of the working table is very stable. It doesn't change during magnetizing or demagnetizing. 3.The panel has special processing,completely sealed from dirt and liquid. |
