DYT
| Model | Min thickness workpiece(mm) | Magnetic force(Top) | Magnetic force(Side) | Dimension | N.W(kg) | ||
| L | B | H | |||||
| DYT-200A | 30 | 1500kgf | 2000kgf | 297 | 138 | 110 | 34 |
| DYT-200B | |||||||
| DYT-150A | 25 | 1200kgf | 1500kgf | 231 | 138 | 110 | 26 |
| DYT-150B | |||||||
| DYT-100A | 20 | 750kgf | 1000kgf | 199 | 122 | 94 | 18 |
| DYT-100B | |||||||
| DYT-50A | 15 | 350kgf | 500kgf | 157 | 105 | 80 | 9.6 |
| DYT-50B | |||||||
| DYT-25A | 15 | 200kgf | 250kgf | 125 | 100 | 74 | 5 |
| DYT-25B | |||||||

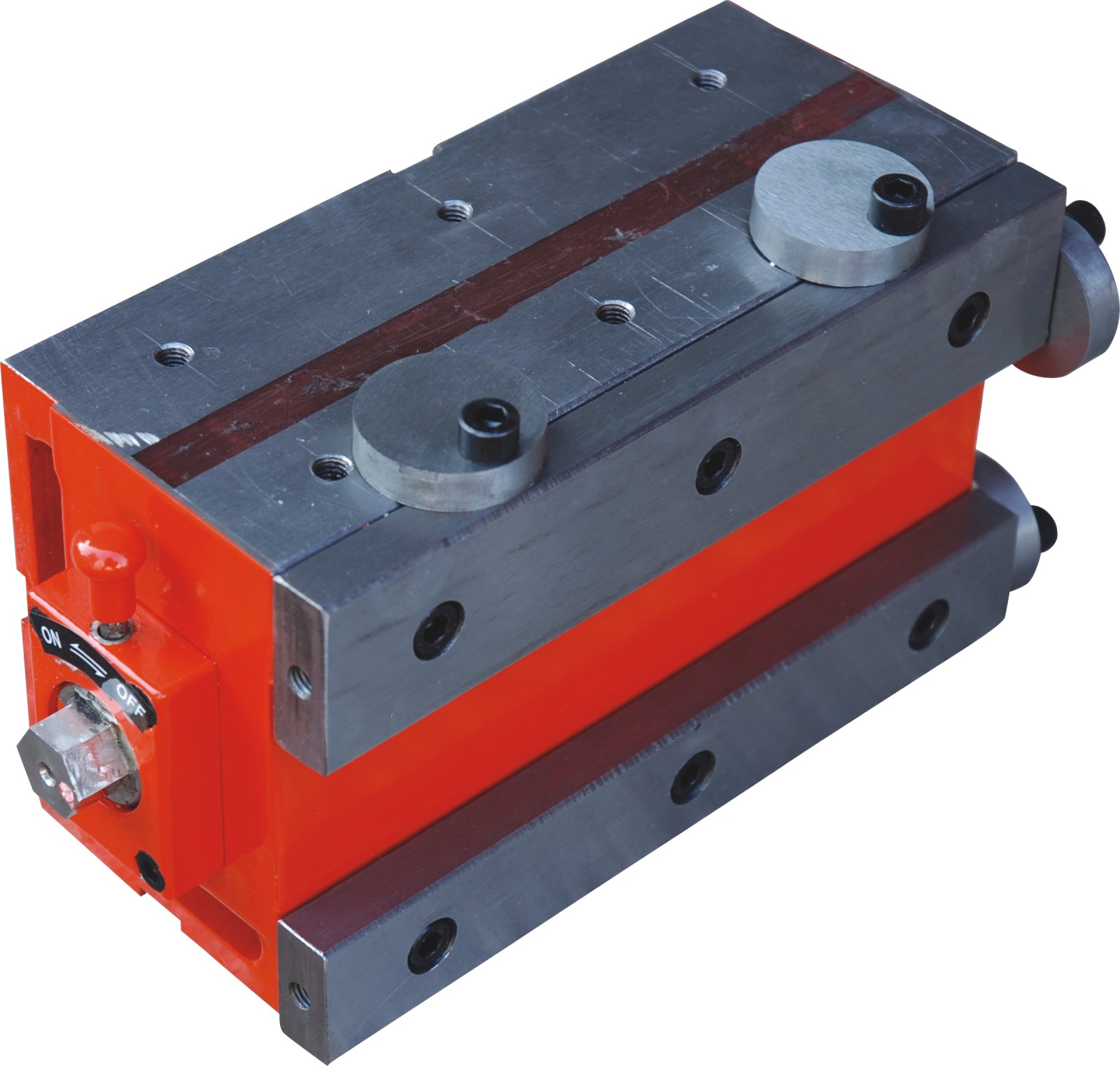

Name | DYT Magnetic Workholding |
Application | lt is preferable for medium and large workpieces, not for small ones. |
features | 1. It is a new sense of clamping way for metal working on CNC Machining Center and milling machine in quick clamping workpieces. 2. Five sides machining can be realized.Complete drilling,tapping,slotting just once. 3. Free to set up position,numbers and distance of magnetic workholding according to the size of workpiece, 4. It includes changeable induction metal block which can be fixed to be 100%accuracyon the workholding before workp-iece processing.Also can complete drilling,tapping metal block during workpiece processing. 5. Finishing workpiece processing when the two steps have been done,efficiency and accuracy are both increased. |
